Programmable CANbus Controllers &
VCU (Vehicle Control Units)

Programmable ECU

8xInput + 8xOutput

Input Convertor

16xInput to CAN

Input Convertor

12xInput to CAN

CAN-Bus Datalogger

Real Time Recorder

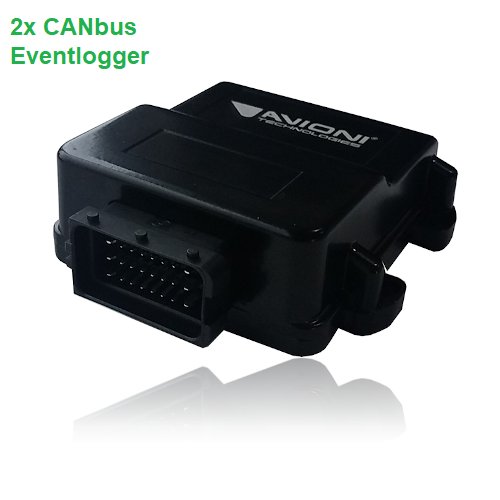

CAN-Bus Datalogger

2x CANbus with I/O

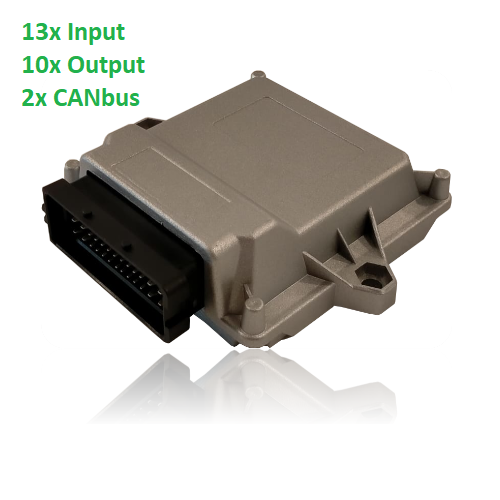

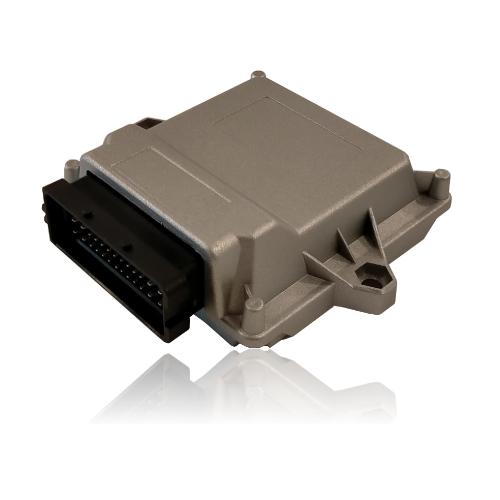

Programmable ECU

13xInput + 10xOutput

Programmable ECU

24 I/O with GND/Power Bus

Multiplexer ECU

16xInput + 16xOutput

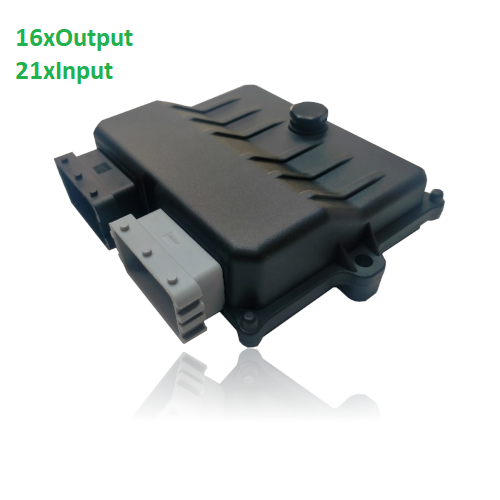

Programmable ECU

21xInput + 16xOutput

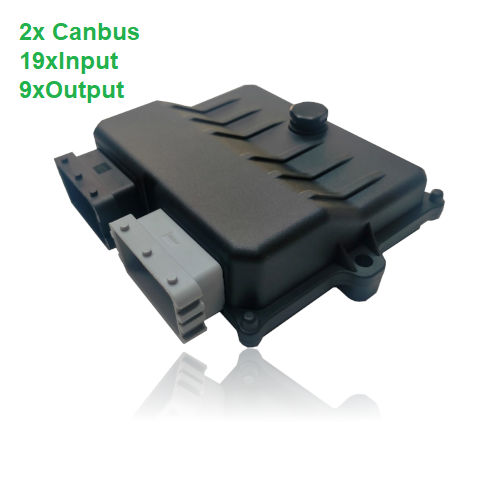

Programmable ECU

2xCAN with 19xInput + 9xOutput

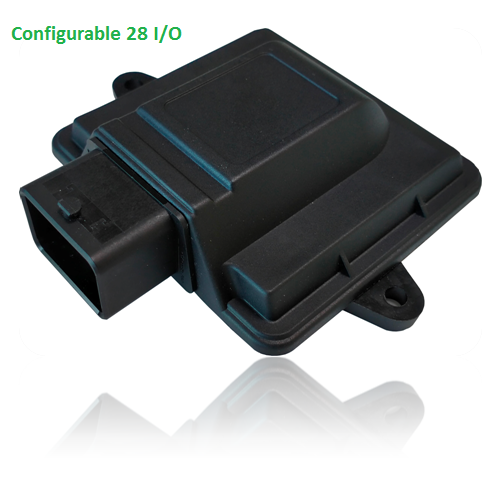

Multiplexer ECU

Configurable 28x I/O - IP67

Multiplexer ECU

Configurable 32x I/O

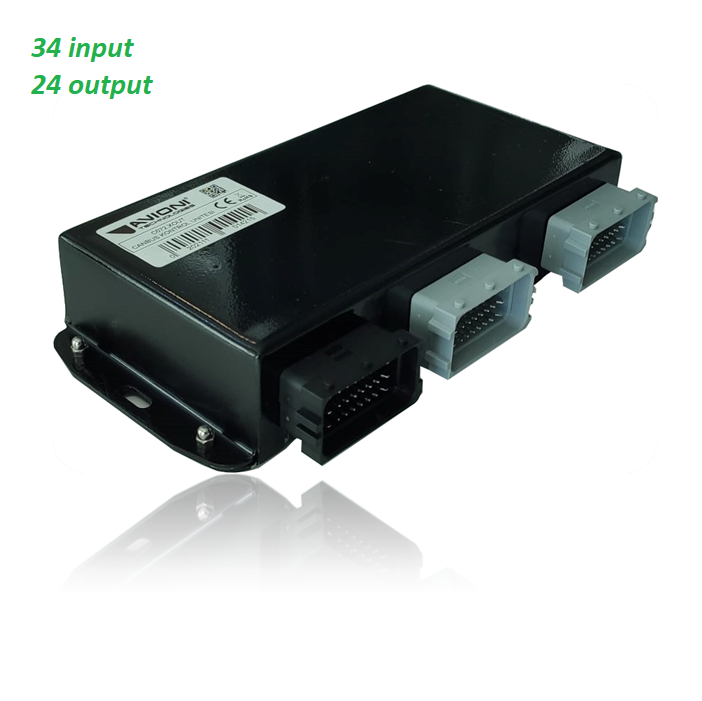

Programmable MUX ECU C72.XOUT

34xInput + 24xOutput

Programmable MUX ECU C72.AERO

2xCAN with 32xInput + 17xOutput

For datasheets and more information please contact us.
All our electronic control units have double microcontroller in order to cross control of inputs and outputs behavior. As contemporary automotive standard, CANbus communication protocol is preffered. All AVIONI® electronic units have one or more CAN-Bus (based on both CANopen & SAE/J1939) port regarding the vehicle's requirements. As well as current feedback, over-current protection, over-voltage protection, reverse polarity protection and diagnostics of all input & outputs, internal watchdog safety relay is a standard feature of our master control units.

Our Electronic Control Units are designed according to comply with EN ISO 13849-1 at PL/d.

AVIONI® ECUs have CE Marking and comply with the following standards according to the latest EMC directive 2014/30/EU:

  • EN 55022:2010/AC:2011 (RF Emission)
  • EN 55024:2010 (Electrostatic Discharge)
  • EN 61000-4-2
  • EN 61000-6-1
  • EN 61000-6-3
Following INPUT and OUTPUT types can be processed by Our Electronic Control Units

  • Input: High Side Digital (On/Off)
  • Input: Low Side Digital (On/Off)
  • Input: 0..5V
  • Input: 0..30V
  • Input: 0..20mA
  • Input: Frequency/RPM (Hz)
  • Input: Resistance (Ohm)
  • Input: Quadrature Encoder
  • Input: Duty Cycle Measurement (0..100%)

  • Output: High Side Digital (On/Off)
  • Output: Low Side Digital (On/Off)
  • Output: High Side PWM
  • Output: Low Side PWM
  • Output: Ratiometric Voltage (0..30V)
  • Output: Frequency Output (Hz)
For datasheets and more information please contact us.
