ALX Series Draw Wire
CANbus Angle & Length Sensor

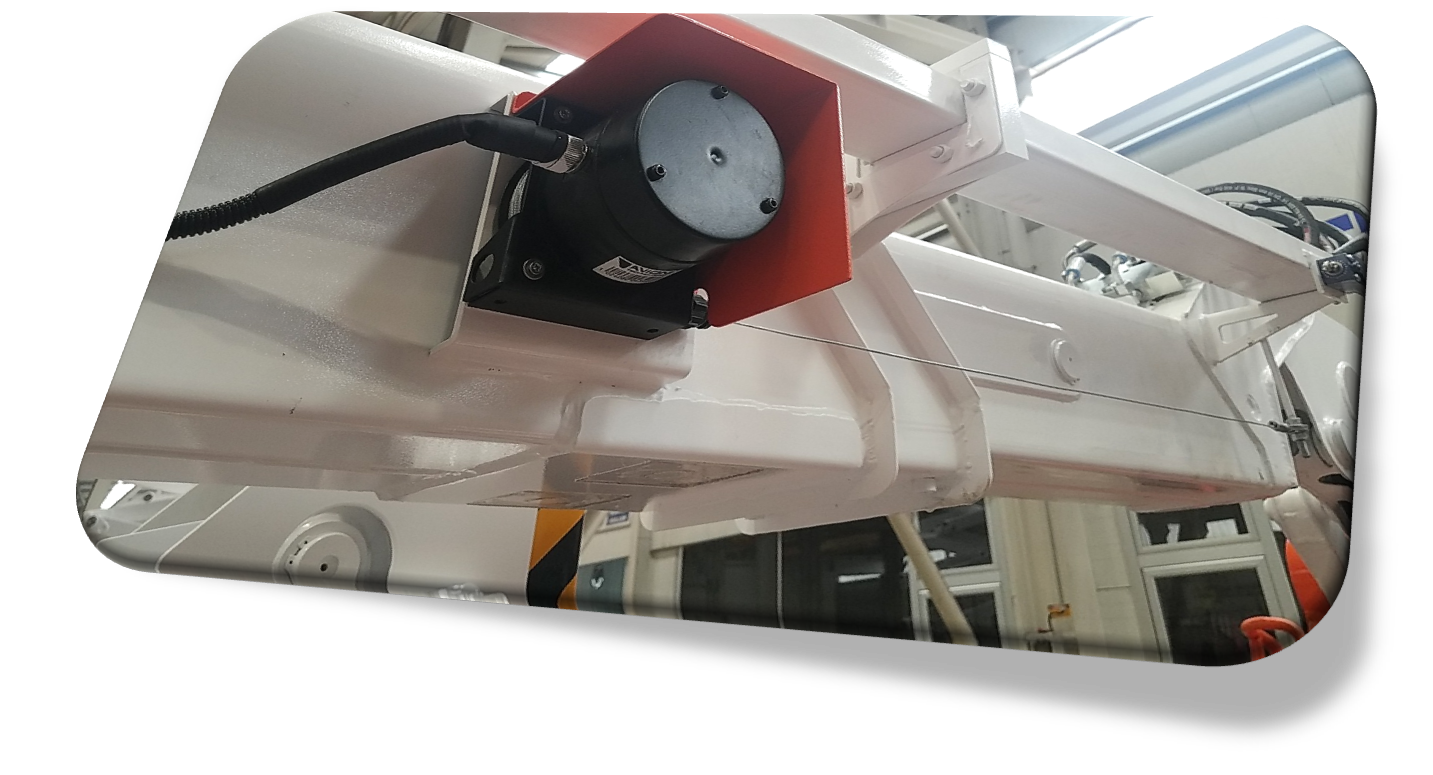

Draw-Wire Angle Length Sensors

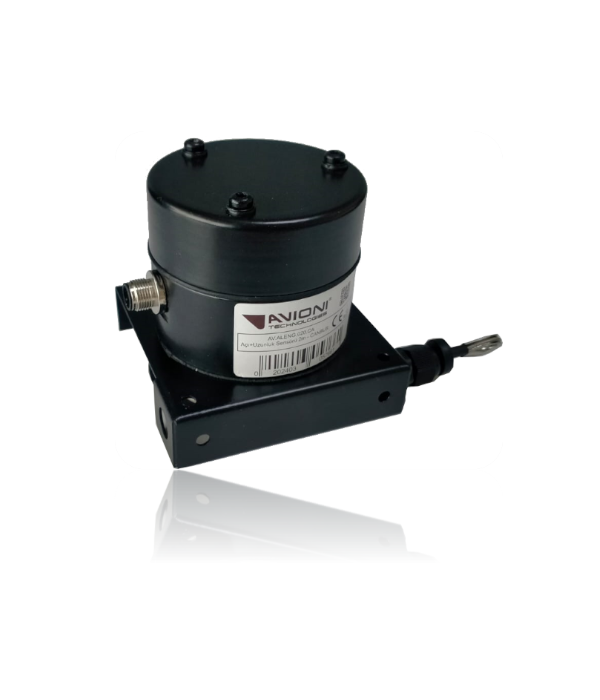

ALX.020
2-meter Draw Wire
Length with Angle
Datasheet

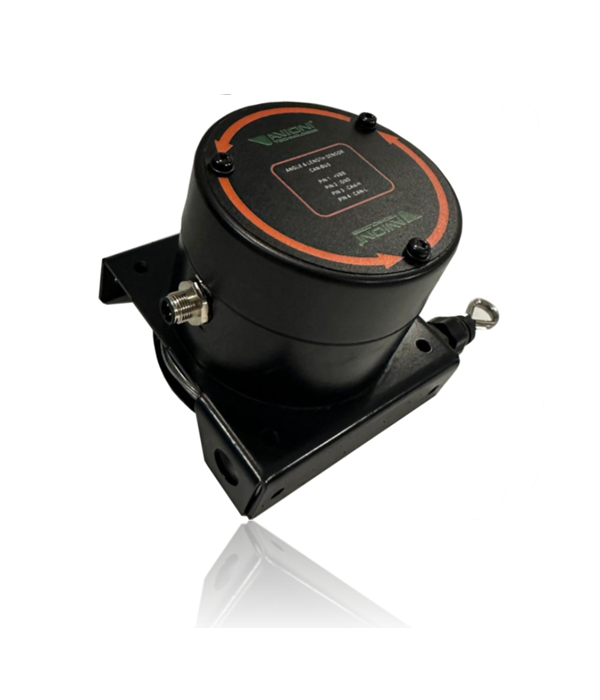

ALX.050
5-meter Draw Wire
Length with Angle
Datasheet

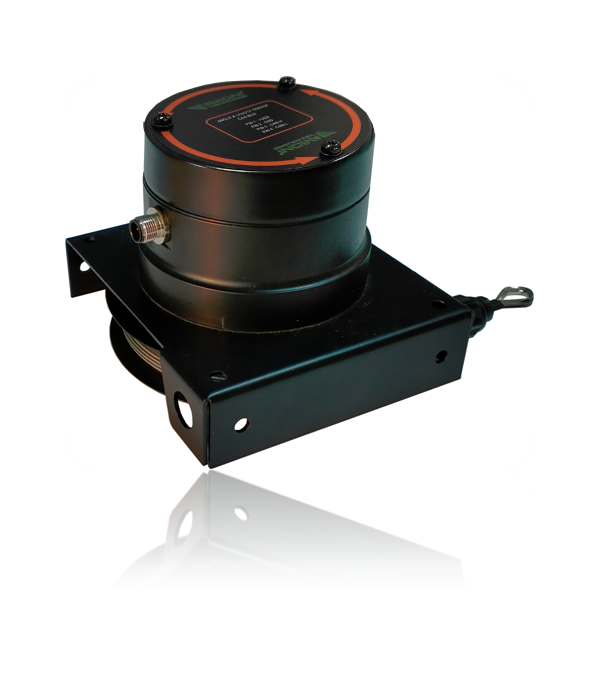

ALX.070
7-meter Draw Wire
Length with Angle
Datasheet

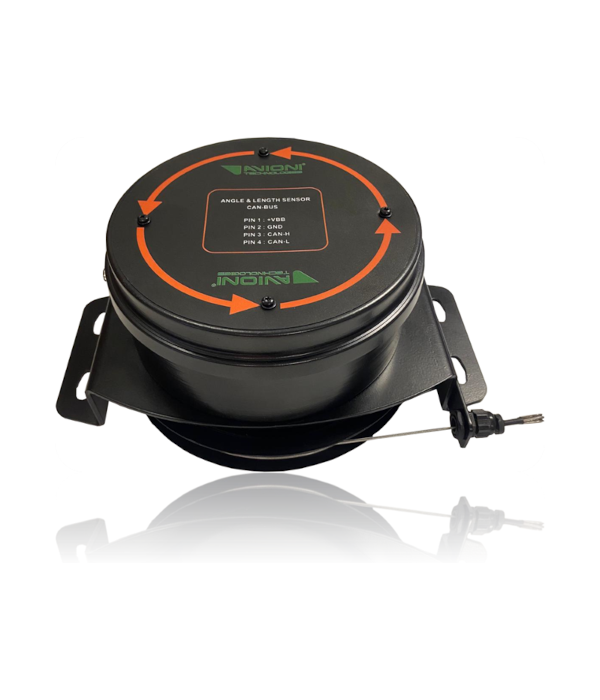

ALX.150
15-meter Draw Wire Length with Angle (opt.Cable Reel)
Datasheet

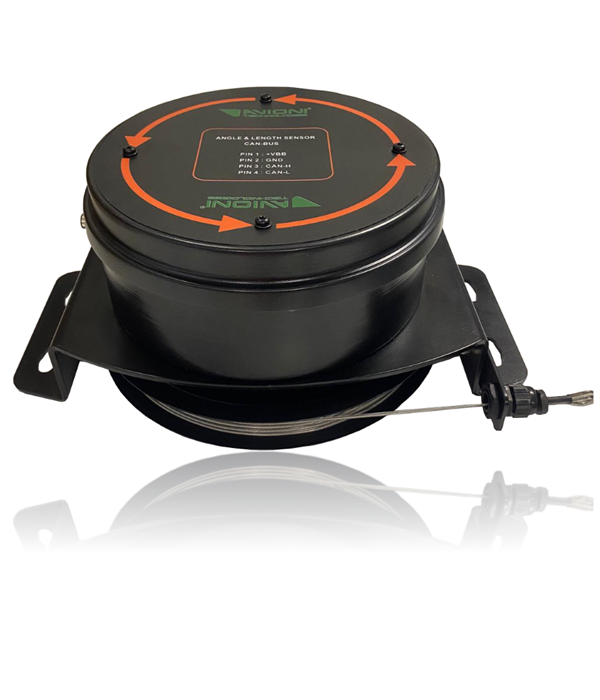

ALX.200
20-meter Draw Wire Length with Angle (opt.Cable Reel)
Datasheet
Technical Features
Length measurement in mm resolution
0..360° measurement in vertical position (ANGLE SENSOR feature)
Angle measurement range can be set as -180° .. +180° by CAN message
Angle measurement direction can be set as counter-clockwise by CAN message
Moving average and Kalman filters against signal interference
High angle sensor resolutio: 0.01° (Range: 0.00° ~ 359.99°)
Resolution can be set to 0.1° by CAN message. (Range: 0.0° ~ 359.9°)
Accuracy: ±0.1°
CAN Node-ID: 1..127 adjustable (Default: 1)
Baudrate: selectable at 20 kbps, 50 kbps, 100 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps (default: 250 kbps)
CAN message period: 10ms, 50 ms, 100 ms, 500 ms, 1000 ms can be selected (Default: 100 ms)
Heartbeat message: 0x700 + Node-ID
Optional redundancy
Mechanical & Electrical Features
Power Supply: 8..35Vdc (Reverse Polarity, High Current, High Voltage & Short Circuit Protection)
Connector Type: M12 4pin (male or female upon request) or 3m-5m-10m cable out
High Protection Class: IP65
Operational Temperature: -40..+85 °C
Full metal enclosure.
