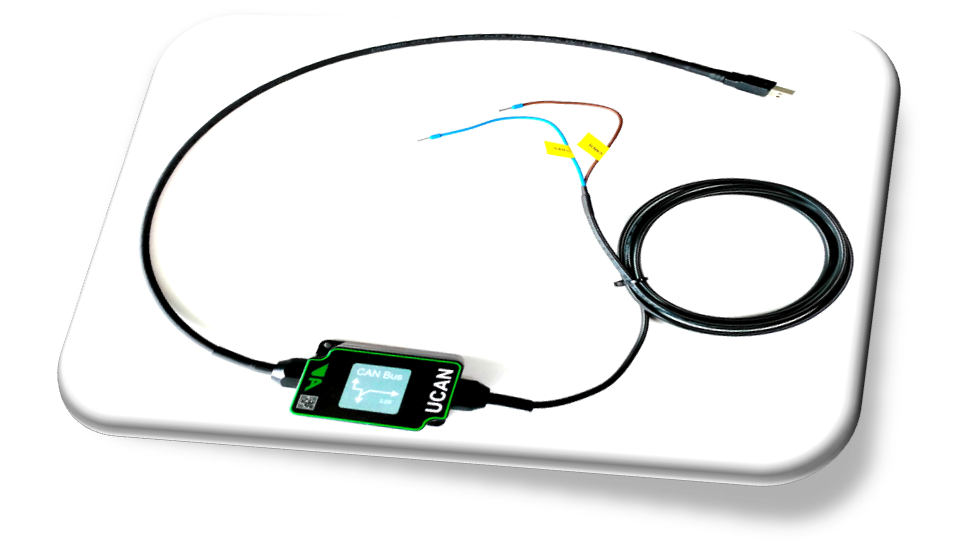

UCAN : USB CAN Adapter

The UCAN adapter enables simple connection to CAN networks. Its compact and IP67 plastic casing makes it suitable for mobile applications.
Datasheet

Technical Features

  • Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
  • High-speed CAN connection (ISO 11898-2)
  • Bit rates from 5 kbit/s up to 1 Mbit/s
  • Time stamp resolution approx. 42 µs
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection : 3-meter dual wire cable (Standard)
  • CAN bus connection : via D-Sub, 9-pin (in accordance with CiA® 106 upon request)
  • STM32F072CBT6 microcontroller (with embedded CAN)
  • NXP TJA1051 CAN transceiver
  • Galvanic isolation on the CAN connection up to 500 V (upon request)
  • CAN termination 120Ω can be activated (upon request)
  • Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
  • High protection against dust and water: IP67
