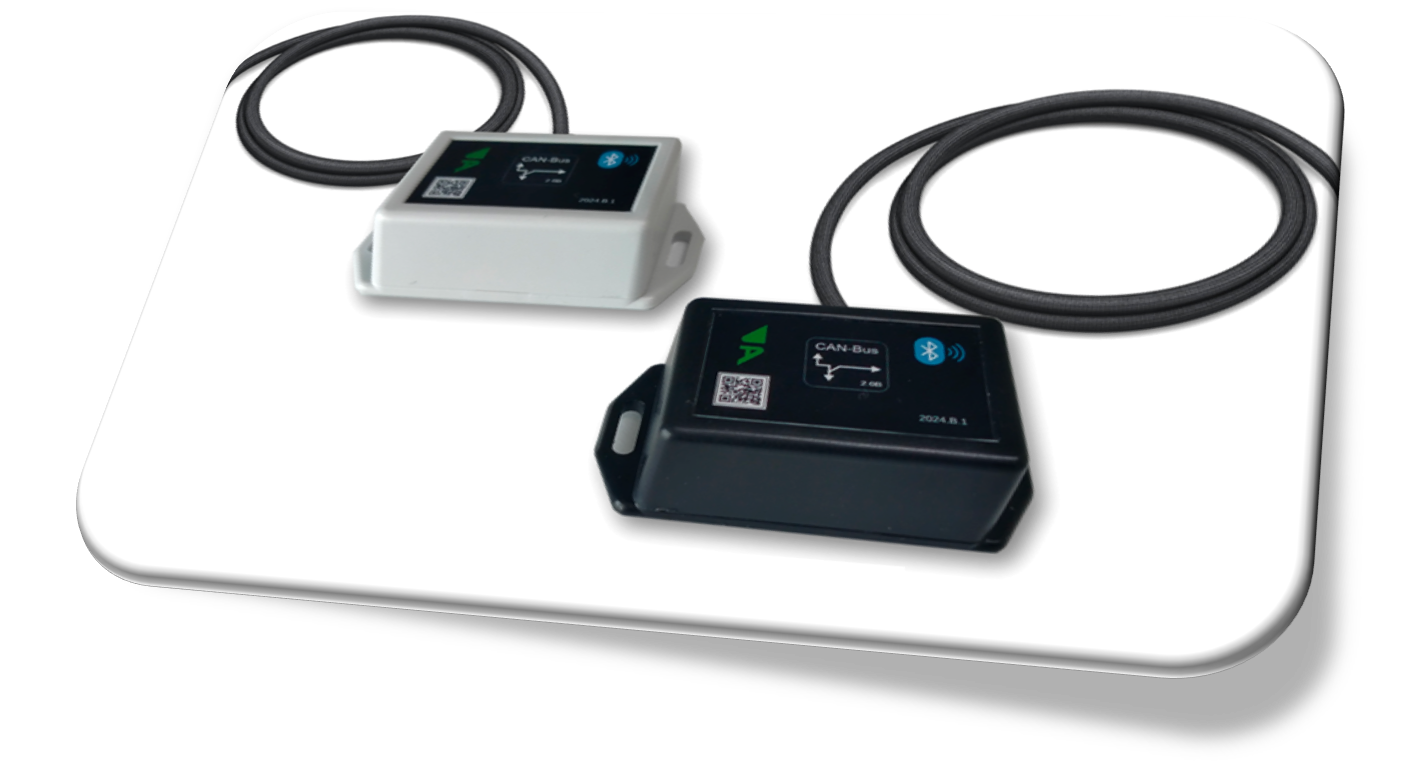

UCAN-BT : Bluetooth® to CAN Adapter

The UCAN-BT adapter enables simple connection to CAN networks over Bluetooth®. You can connect your devices such as tablets and mobile phones to your CAN network using the UCAN-BT Master unit, or you can even set up a small network using the UCAN-BT Slave units.
Datasheet

Technical Features

  • Low latency fast connection with Bluetooth® 5.
  • High-speed CAN connection (ISO 11898-2)
  • Bit rates from 5 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection : 1-meter dual wire cable (Standard)
  • CAN bus connection : via D-Sub, 9-pin (in accordance with CiA® 106 upon request)
  • Power connection: 9 - 32V DC
  • 32-bit RISC-V single-core processor, up to 160 MHz
  • Infineon TLE6250GV33 CAN transceiver
  • Galvanic isolation on the CAN connection up to 500 V (upon request)
  • Status LED for visual debugging.
  • Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
  • High protection against dust and water: IP67
  • Supporting all devices which have Bluetooth® Low Energy (BLE) via API for development purposes.
  • Shipped with Android Application to the customers.
